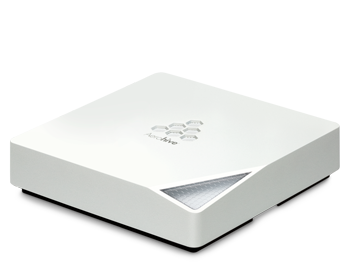

HiveAP 330 802.11n Wireless Access Point

The Aerohive HiveAP 330 is an enterprise-grade, two radio (3×3) three stream MIMO 802.11n solution, capable of 450Mbps data rates.

Aerohive Networks HiveAP 330 series access point (AP) is a high performing and highly reliable 802.11n access point. The Hive AP 330 provides high performance dual concurrent (2.4GHz and 5GHz) 802.11n 3×3 with three spatial stream MIMO (450 Mbps per radio) as well as dual 10/100/1000 Ethernet port service.

The HiveAP 330 is an enterprise-grade, (3×3) MIMO solution, designed for high bandwidth demand wireless enterprise environments. With multiple radios and the ability to provide service concurrently on both 2.4Ghz and 5Ghz bands, the HiveAP 330 can provide up to an aggregate data rate of 450 Mbps. The HiveAP 330 provides both mesh and support for legacy 802.11a, b, and g clients, through Aerohive’s industry unique and resilient controller-less architecture.

Features & Benefits

Flexible Hardware Platform

  • Multiple radios provide concurrent 802.11a/n and 802.11b/g/n connections with no degradation in performance
  • Automatic or dedicated mesh backup
  • Dual Ethernet ports for etherchannel or backup connectivity.
  • Plenum Rated APs for indoor, office environments
  • Supports 802.3af PoE or standard power adapter
  • USB interface for future 3G/4G services
  • Hardware acceleration for iPsec services

Innovative Design

  • Low profile design blends well into an office environment
  • Feature optimized hardware design
  • Low-distraction indicators appear as gently glowing rather than bright blinking lights

Security

  • Trusted Platform Module (TPM)–Hardware-based key storage and encryption
  • Wireless privacy & authentication Wi-Fi CERTIFIED™ WPA™ and WPA2™, 802.11i, WEP, 802.1x, PSK
  • Granular user profile-based management defines QoS, mobility policies, and security policies for each user that enters the network
  • Encryption: AES:CCMP, TKIP, and RC4 (WEP only)
  • Marking and policing–WMM™ (802.11e) for wireless, 802.1p and/or DiffServ
  • Wi-Fi CERTIFIED WMM
  • WMM power save (U-APSD)

Anti-Theft

  • Designed to work with Kensington-style locks
  • Tamper-proof security screw (with bracket option)

Routing and Wired LAN

  • Supports 3G/4G backhaul to provide mobile access connectivity from anywhere in the world
  • Supports unified wired and wireless layer 3 access policies across Ethernet and Wi-Fi

Specifications

Radio Specifications—802.11a

  • 5.150–5.950 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback

Radio Specifications—802.11b

  • 2.4–2.5 GHz Operating Frequency
  • Direct-Sequence Spread-Spectrum(DSSS) Modulation
  • Rates (Mbps): 11, 5.5, 2, 1 w/ auto fallback

Radio Specifications—802.11g

  • 2.4–2.5 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • 20 dBm (100 mW) Transmit Power
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback

Radio Specifications—802.11n

  • 2.4–2.5 GHz & 5.150–5.950 GHz Operating Frequency
  • 802.11n Modulation
  • Rates (Mbps): MCS0–MCS23 (6.5Mbps – 450Mbps)
  • 3×3:3 Stream Multiple-In, Multiple-Out (MIMO) Radio
  • HT20 (both 2.4GHz and HT40 High-Throughput(HT) Support)
  • A-MPDU and A-MSDU Frame Aggregation

Mounting

  • Desktop
  • Wall Mount bracket included
  • Ceiling Tile Clips 11/17” included, 9/16” sold as an accessory

Antennas

  • 3x Integrated single band, 2.4-2.5 GHz Omni-directional antennas, 6.0 dBi peak gain
  • 3x Integrated single band, 5.1-5.8 GHz Omni-directional antennas, 6.0 dBi peak gain

Interfaces

  • 2x autosensing 10/100/1000 Base-T Ethernet Ports
  • Link Aggregation supported via Ether channel (link aggregation at 10/100 only)
  • 1x Serial RJ45 port (bits per second: 9600, data bits: 8, parity: none, stop bits: 1, flow control: none)
  • USB 2.0 port
  • 1x Reset Pinhole

Physical

  • WxHxD: 7.875 in. x 1.5 in. x 7.875 in. (20 cm x 3.8 cm x 20 cm)
  • 2 lbs (0.68 kg)

Environmental

  • Operating: 0 to +40°C, Storage: -20 to +70°C
  • Humidity: 95%

Power Options

  • 802.3af and/or 802.3at Power over Ethernet (PoE) port
  • 12v DC external power adapter (sold separately)

Power Specification

  • AC/DC power adapter:
    • Input: 100–240 VAC
    • Output: 12 V/0.625 A
  • PoE nominal input voltages: 48V, 0.35A, (802.3af) –48V, 06.25A (802.3at)
  • RJ-45 power in put pins: Wires 4,5,7,8 or 1,2,3,6
  • 802.3af compliant with Cat-5 cable (14.5W max power draw)
