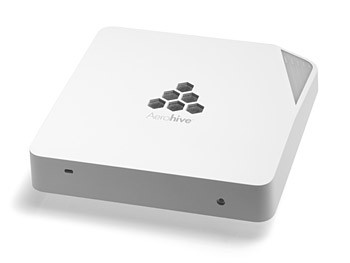

HiveAP 320 802.11n Wireless Access Point

The Aerohive Networks HiveAP 320 is a high-performance, dual concurrent (2.4 and 5 GHz) 802.11n, 3×3 MIMO access point with dual 10/100/1000 Ethernet ports. The HiveAP 320 is a Plenum-Rated AP designed for indoor office environments. Dual Ethernet ports allow the access points to use link aggregation to bond 100Mbps links or to ensure reliability with redundant links. This allows the performance advantage of dual radio 802.11n to be seen even when connected through legacy 10/100 switches.
When connected to two separate switches, the dual links can be used for redundant data connectivity in case one of the switches fails. The HiveAP 320 also features Smart Power over Ethernet (PoE), which allows operation at standard 802.3af as well as at 802.3at specs to provide additional deployment functionality.

Features & Benefits

  • Flexible environmental support enabling deployment in a variety of environments
  • Plenum rated for indoor, office environments
  • Dual Ethernet support allows for redundant data
  • Supports 802.3af Power over Ethernet so deployment does not require access to power outlet
  • Dual Concurrent Radios (a/b/g/n) able to function in a mixed-client environment at either 2.4 or 5 GHz
  • Variety of mounting options including desktop, wall mount, and ceiling tile clips
  • Innovative, low-impact design that blends easily into an office environment
  • Low distraction indicators appear as softly glowing color bands, rather than brightly blinking lights
  • Trusted Platform Module hardware-based key storage and encryption to ensure physical security
  • Up to 16 SSIDs per radio – enabling network segmentation

Specifications

Mounting
  • Desktop
  • Wall Mount
  • Ceiling Tile Clips
Physical Security
  • Kensington security lock point
  • Tamper-proof security screw
Radios 802.11a Radio Specifications

  • 5.150–5.950 GHz Operating Frequency
  • rthogonal Frequency Division Multiplexing (OFDM) Modulation
  • 20 dBm (100 mW) Transmit Power
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 with automatic fallback

802.11b Radio Specifications

  • 2.4–2.5 GHz Operating Frequency
  • Direct-Sequence Spread-Spectrum (DSSS) Modulation
  • 20 dBm (100 mW) Transmit Power
  • Rates (Mbps): 11, 5.5, 2, 1 with automatic fallback

802.11g Radio Specifications

  • 2.4–2.5 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • 20 dBm (100 mW) Transmit Power
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 with automatic fallback

802.11n Radio Specifications

  • 2.4–2.5 GHz and 5.150 GHz – 5.950 GHz Operating Frequency
  • 802.11n Modulation
  • 20 dBm (100 mW) Transmit Power
  • Rates (Mbps): MCS0 – MCS15 (6.5Mbps – 300Mbps)
  • 2×3, 3×3 Multiple-In, Multiple-Out (MIMO) Radio
  • HT20 and HT40 High-Throughput (HT) Support
  • A-MPDU and A-MSDU Frame Aggregation
Antennas
  • 3x Integrated single band, 2.4-2.5 GHzOmni-directional antennas, 2.0 dBi gain
  • 3x Integrated single band, 5.1-5.8 GHzOmni-directional antennas, 2.0 dBi gain
Interfaces
  • 2x autosensing 10/100/1000 Base-T EthernetPorts• Power over Ethernet (PoE) capable (802.3af & pre-802.3at) Ethernet Port
  • Link Aggregation supported via Etherchannel (link aggregation at 10/100 only)
  • 1x Serial RJ45 port (bits per second:9600, data bits: 8, parity: none, stop bits: 1, flow control:none)
  • 1x Reset Pinhole
Dimensions(WxHxD)
  • 7.875 in. W x 1.5 in. H x 7.875 in. D(20 cm W x 3.8 cm H x 20 cm D)
Weight
  • 2 lbs (0.68 kg)
Environmental
  • Operating: 0 to +40°C• Storage: -20 to +70°C
  • Humidity: 95%
Environment Compliance
  • L 2043
Power Options
  • 802.3af and/or pre-802.3at Power overEthernet (PoE) ports with SmartPoE intelligentpower management
  • 48v DC external power adapter (sold separately)
Power Specifications
  • AC/DC power adapter:
    • Input:100–240 VAC
    • Output: 48V/0.625A
  • PoE nominal input voltages: 48 V, 0.35A (802.3af) – 48 V, 0.625A (Pre-802.3at)
  • RJ-45 power input pins: Wires 4, 5, 7, 8 or 1, 2, 3, 6
