The FortiGate 100-900 mid-range appliances deliver up to 52 Gbps firewall performance through a combination of purpose-built FortiASIC processors and integrated high- density ports offering an ideal fit for enterprise campuses. It delivers five times better next-generation firewall performance compared to alternate products and provides the best price/performance in the industry.
Powered by FortiOS, FortiGate appliances provide visibility into users and devices while controlling more than 3500 applications for deeper inspection and actionable reporting. FortiGate appliances are routinely validated by independent, real-world tests and consistently receive superior ratings for security effectiveness.
- Up to 52 Gbps – offers best-in-class firewall price/performance
- 5x faster than any other NGFW platform in the industry
- Integrated 10GbE ports to protect high-speed internal segmentation
- NSS Labs “Recommended” NGFW and NGIPS – delivers top-rated protection
- Single-pane-of-glass management for unmatched visibility and control
FortiGate 600-900 Series
FortiGate 600-900 series appliances deliver up to 52 Gbps of firewall throughput plus multiple integrated 10GbE ports. This combination delivers an ideal solution for internal segmentation firewall and next-generation firewall providing superior security and multi-gigabit speeds to protect specific parts of the internal network as well as edge of network.
- FortiGate-900D
- FortiGate-800D
- FortiGate-800C
- FortiGate-600D
- FortiGate-600C
- FortiOS 5 – NGFW
- Transceivers
- FortiRPS
- Product Matrix
| Product Name | Firewall Throughput 1518 Bytes | Firewall Throughput 512 Bytes | Firewall Throughput 64 Bytes | Firewall Max Concurrent Session | Firewall New Sessions per second | IPS Throughput | IPSec Throughput 512 Byte Packet | Total Network Interfaces | Total Storage Capacity |

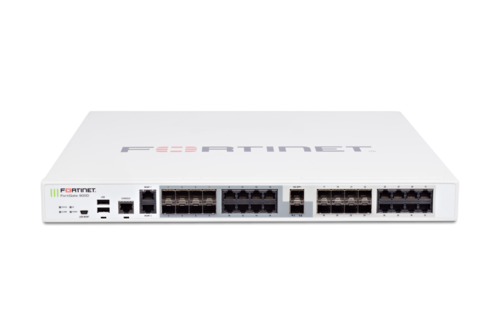

| FortiGate-900D | 52 Gbps | 52 Gbps | 33 Gbps | 11 Million | 280,000 | 8 Gbps | 25 Gbps | 2 x 10GbE SFP+,16 x SFP GbE, 16 x RJ45 GbE, 2 x 10/100/1000 RJ45 port | 256 GB (MLC mSATA SSD 256GB x1) |
| FortiGate-800C | 20 Gbps | 20 Gbps | 20 Gbps | 7 Million | 190,000 | 6 Gbps | 8 Gbps | 2 x 10GbE SFP+, 12 x 10/100/1000 RJ45, 8 x shared 10/100/1000 RJ45 or SFP, 2 x 10/100/1000 RJ45 port pairs with Bypass Protection, all ports accelerated | 60 GB (MLC SSD) |
| FortiGate-800D | 36 Gbps | 36 Gbps | 22 Gbps | 5 Million | 280,000 | 8 Gbps | 20 Gbps | 20 x 10/100/1000 RJ45, 8 x SFP, 2 x SFP+, 2x Management. | 240GB MLC |
| FortiGate-600C | 16 Gbps | 16 Gbps | 16 Gbps | 3 Million | 70,000 | 4 Gbps | 8 Gbps | 16 x 10/100/1000 RJ45, 4 x shared 10/100/1000 RJ45 or SFP, 2 x 10/100/1000 RJ45 port pairs with Bypass Protection, all ports accelerated | 60 GB (MLC SSD 60Gx1) |
| FortiGate-600D | 36 Gbps | 36 Gbps | 24 Gbps | 5.5 Million | 270,000 | 7 Gbps | 20 Gbps | 8 x 10/100/1000 RJ45, 8 x SFP, 2x SFP+, 2x Management. | 120GB (MLC SSD) |
FortiGate 300-500 Series
The FortiGate 300-500 series appliances deliver up to 16 Gbps of firewall throughput plus multiple integrated 1GbE ports. This combination of performance, port density, and consolidated security features offers an ideal platform for enterprise branch locations.
- FortiGate-500D
- FortiGate-400D
- FortiGate-300D
- FortiGate-300C
- FortiOS 5 – NGFW
- Transceivers
- FortiRPS
- Product Matrix
| Product Name | Firewall Throughput 1518 Bytes | Firewall Throughput 512 Bytes | Firewall Throughput 64 Bytes | Firewall Max Concurrent Session | Firewall New Sessions per second | IPS Throughput | IPSec Throughput 512 Byte Packet | Total Network Interfaces | Total Storage Capacity |

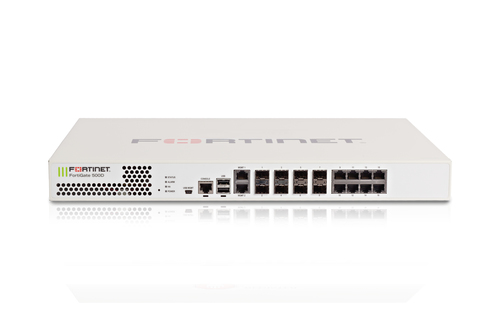

| FortiGate-500D | 16 Gbps | 16 Gbps | 16 Gbps | 6 Million | 250,000 | 4.7 Gbps | 14 Gbps | 8 x 10/100/1000 RJ45, 8 x SFP, 2x Management. | 120GB MLC |
| FortiGate-400D | 16 Gbps | 16 Gbps | 16 Gbps | 5.5 Million | 200,000 | 2.8 Gbps | 14 Gbps | 8 x 10/100/1000 RJ45, 8 x SFP, 2x Management. | N/A |
| FortiGate-300C | 8 Gbps | 8 Gbps | 8 Gbps | 2 M | 50,000 | 1.4 Gbps | 4.5 Gbps | 8 x 10/100/1000 FortiASIC-accelerated port, 2 x 10/100/1000 port | 32 GB (MLC Nand flash) |
| FortiGate-300D | 8 Gbps | 8 Gbps | 8 Gbps | 6 Million | 200,000 | 2.8 Gbps | 7 Gbps | 4 x 10/100/1000 RJ45, 4 x SFP, 2x Management. | 120GB MLC |
FortiGate 100-200 Series
FortiGate 100-200 series appliances deliver up to 4 Gbps of firewall throughput plus multiple integrated 1GbE ports. This combination of performance, port density, and consolidated security features offers an ideal platform for mid-sized businesses and enterprise branch locations.
- FortiGate-200D Series
- FortiGate-100D Series
- FortiGateRugged-100C
- FortiOS 5 – NGFW
- Transceivers
- FortiRPS
- Product Matrix
| Product Name | Firewall Throughput 1518 Bytes | Firewall Throughput 512 Bytes | Firewall Throughput 64 Bytes | Firewall Max Concurrent Session | Firewall New Sessions per second | IPS Throughput | IPSec Throughput 512 Byte Packet | Total Network Interfaces | Total Storage Capacity |
| FortiGate-140D-POE-T1 | 2.5 Gbps | 1 Gbps | 200 Mbps | 3 Million | 22,000 | 950 Mbps | 450 Mbps | 2x 10/100/1000 WAN port; 1x 10/100/1000 HA; 1x 10/100/1000 MGMT port; 2x SFP DMZ; 36x 10/100/1000 internal switch including 16x with POE, 1x T1 | 32GB MLC |
| FortiGate-280D-POE | 4 Gbps | 4 Gbps | 4 Gbps | 3.2 Million | 77,000 | 2.1 Gbps | 1.3 Gbps | 84x 10/100/1000 RJ45 LAN(32x support POE), 4x SFP DMZ, 2x 10/100/1000 WAN, 1x 10/100/1000 MGMT port. | 64GB MLC |
| FortiGate-240D-POE | 4 Gbps | 4 Gbps | 4 Gbps | 3.2 Million | 77,000 | 2.1 Gbps | 1.3 Gbps | 40x 10/100/1000 RJ45 LAN, 2x SFP DMZ, 2x 10/100/1000 RJ45 WAN, 1x 10/100/1000 MGMT port. | 64GB SATA MLC |
| FortiGate-240D | 4 Gbps | 4 Gbps | 4 Gbps | 3.2 Million | 77,000 | 2.1 Gbps | 1.3 Gbps | 40x 10/100/1000 RJ45 LAN, 2x SFP DMZ, 2x 10/100/1000 RJ45 WAN, 1x 10/100/1000 MGMT port. | 64GB MLC |

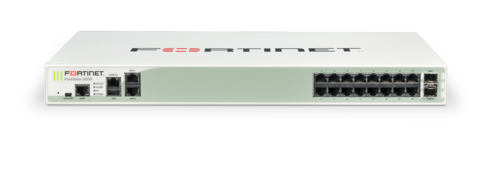

| FortiGate-200D | 3 Gbps | 3 Gbps | 3 Gbps | 3.2 Million | 77,000 | 1.7 Gbps | 1.3 Gbps | 16x 10/100/1000 RJ45 LAN, 2x 10/100/1000 RJ45 WAN, 2x SFP, 1x 10/100/1000 MGMT port. | 64GB SATA MLC |
| FortiGate-200D-POE | 3 Gbps | 3 Gbps | 3 Gbps | 3.2 Million | 77,000 | 1.7 Gbps | 1.3 Gbps | 16x 10/100/1000 RJ45 LAN, 2x 10/100/1000 RJ45 WAN, 2x SFP, 1x 10/100/1000 MGMT port. | 64GB SATA MLC |
| FortiGate-140D-POE | 2.5 Gpbs | 1 Gbps | 200 Mbps | 3 Million | 22,000 | 950 Mbps | 450 Mbps | 2x 10/100/1000 WAN port; 1x 10/100/1000 HA; 1x 10/100/1000 MGMT port; 2x SFP DMZ; 36x 10/100/1000 internal switch including 16x with POE | 32GB MLC |
| FortiGate-140D | 2.5 Gpbs | 1 Gbps | 200 Mbps | 3 Million | 22,000 | 950 Mbps | 450 Mbps | 2x 10/100/1000 WAN port; 1x 10/100/1000 HA; 1x 10/100/1000 MGMT port; 2x SFP DMZ; 36x 10/100/1000 internal switch; | 32GB MLC |
| FortiGate-100D | 2.5 Gbps | 1 Gbps | 200 Mbps | 3 Million | 22,000 | 950 Mbps | 450 Mbps | 2 x WAN, 1 x DMZ, 1 x MGMT, 2 x HA, 16 x INTERNAL ports, 2x SFP shared media with RJ45, all are 10/100/1000 ports | 32GB MLC |
| FortiGateRugged-100C | 2 Gbps | 1 Gbps | 180 Mbps | 2.5 Million | 22,000 | 950 Mbps | 60 Mbps | 2 x 10/100/1000 RJ45 ports, 4 x 10/100 RJ45 ports and 4 x 100Base-FX SC MM Fiber ports | 0 |
